INDUSTRIAL GREASES

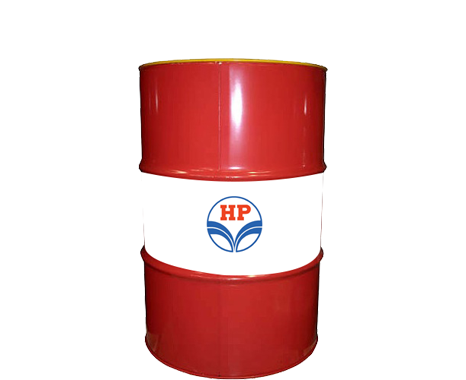

LITHON RR 3 (S)/RR 3 (G) SERIES
INDUSTRIAL GREASES
Meets specifications:
LITHON RR 3 S meet IS:7623-1993 Grade EP 3 Type. Meets TATA MOTORS requirement of EP Type grease
Application areas:
LITHON RR 3 S has, in addition, shear stability, high load carrying capacity and is recommended for situations requiring the use of an extreme pressure multipurpose grease. LITHON RR 3 S is also suitable for ball and roller bearings requiring NLGI Grade 3 grease with EP properties.
Performance benefits:
- Excellent water resistance properties.
- Works most satisfactorily even at high loads, wet and dry situations
- Excellent mechanical and oxidation stability
Special Features
LITHON RR series of lubricants are first quality, lithium soap greases suitable for lubricating various types of mechanical equipments. These are superior multipurpose greases, developed to meet the varied requirements of bearing manufacturers. They are water-resistant and are corrosion inhibited with excellent oxidation and mechanical stability.
Physico-chemical properties
| LITHON RR 3 (S)/ RR 3 (T)/RR 3 (G) SERIES | |
|---|---|
| Cons Worked 100000X | 250 |
| Cons Worked 60X | 240 |
| Dropping Point, ºC | >180 |
| Four Ball Weld Load, kg | 280.0 |
| Wheel Bearing Deposit | FFD |
| Wb Leakage, g | 3 |
| LITHON RR 3 B | |
|---|---|
| Appearance | Smooth And Homogenous |
| Colour | Amber To Light Brown |
|
Consistency Of The Grease @ 25± 0.5 ºC, 0.1 mm Units Worked, 60 X Worked, 1,00,000 X |
± 15 Of 60X 220-240
± 30 Of 60X |
| Corrosion, Copper Strip, @ 100ºC For 24 Hours | No Evidence Of Discoloration Etching Or Corrosion |
| Dropping Point, ºC | 180 |
| Foreign Matter | Nil |
| Free Alkalinity, As LIOH, %Wt | 0.20 |
| Free Organic Acidity, As Oleic Acid | 0.30 |
| Heat Stability, @ 100ºC, 30 Hrs, Loss % Wt | 5.0 |
| Resistance To Water Washout @ 80ºC, Percent Loss By Wt | 5.0 |
|
Roll Stability % Change In Penetration A) After 2 Hrs Rolling B) After 16 Hrs Rolling @ 50ºC |
10 15 |
| Oxidation Stability, @ 100ºC Drop In Pressure, psi | 10 |
|
Mineral Oil Component Charged: Flash Point, (COC)ºC, Min Kinematic Viscosity @ 100ºC, cSt Kinematic Viscosity @ 40ºC, cSt Viscosity Index, min |
200 10 12 100 -- 90 |
| Emcor Rust Test, Rating | 0,0 |
| Rust Preventive Properties, Rating | 1 |
| Oil Separation During Storage | 5.0 |
|
Wheel Bearing Test Leakage, g, Max Slump Test |
5
Shall Be Free From Deposits |
| Four Ball Weld Load, kg, min | 250 |
| Timken ok Load, Lb, min | 25 |
| Water Content, % wt | Nil |
